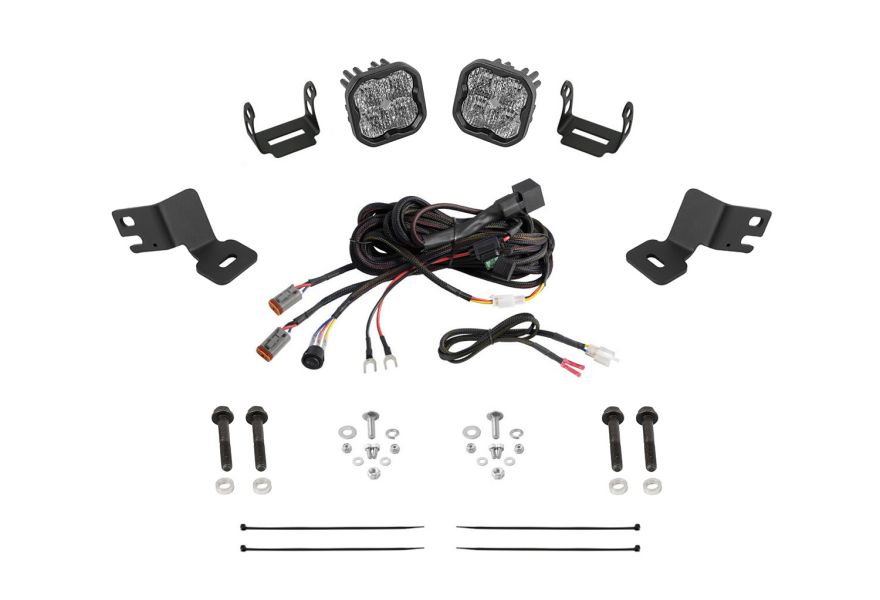

Stage Series A-Pillar Pod Kit for 2021-2024 Polaris RZR Trail

Features

• Bolt-on fitment on 2021-2024 Polaris RZR Trail.
• Allows you to mount two Stage Series LED Pods to the A-Pillars.
• Utilizes existing mounting points for easy installation.
• Thick-gauge stainless steel construction.
• Assembled in USA.

Overview

Perfect fitment. The Stage Series A-Pillar Pod Kit for the 2021-2024 Polaris RZR Trail allows you to easily mount two SS5 or SS3 Pods to the A-Pillars of your ATV. These application-specific A-Pillar brackets were CAD-designed to install with no cutting or drilling required!

Built to last. The mounts in this kit utilize a thick-gauge, stainless steel design to handle the added weight of an SS5 pod. With their robust construction, you won't experience any vibration or bouncing while driving.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our LED Pods collect all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS5 and SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the Stage Series Pod is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional output. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

Combo combines both the Driving and Flood optics. The SS5 shines light downrange in a full 70x30 degree pattern and the SS3 shines light downrange in a 65x25 degree pattern.

Snap-on covers. We also offer snap-on covers for your Stage Series LED Pods. These covers are available in a variety of colors and keep your Stage Series Pod clean and protected from dirt, dust, or whatever else the road throws your way!

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. We also offer replacement lenses that allow you to change the color or optic of your Stage Series LED Pods.

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information.

Backlight Functionality. The Stages Series pods included in the kit have a distinctive backlight feature. This integrated backlight gives you an additional accent light, along with the main beam. The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. The SS3 pods include a brilliant Amber backlight, while the SS5 Pods include a selectable backlight with eight different color options. Selecting the backlight color on the SS5 is easy - simply alternate the power on and off. There’s no complicated programming with a controller!

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
