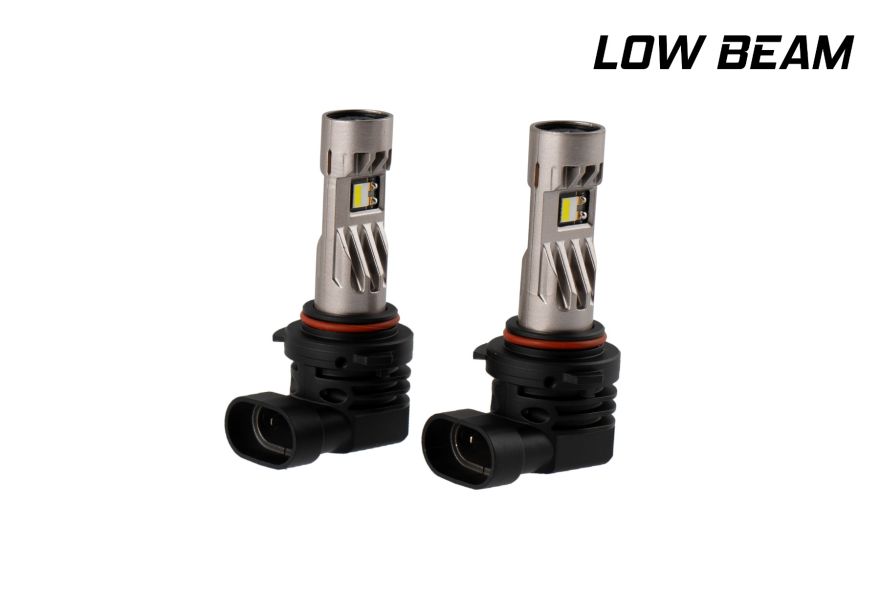

Low Beam LED Headlight Bulbs for 2014-2016 Jeep Compass Limited Edition (pair)

Features

• Direct replacement for Jeep Compass Low Beam headlight bulbs with compact fitment.
• Advanced LED Technology for industry-leading performance.
• Internal cooling for superior reliability.
• Compact fitment with integrated driver.
• Backed by limited lifetime warranty.
• Anti-flicker modules included with order.
• Designed and engineered in USA (Patents Pending).

SL2 and SL2 Pro LED Headlight

Diode Dynamics has set the standard for LED bulbs with a history of solutions engineered to provide a true increase in performance. Thanks to improvements in technology, we are excited to redefine the standard once again. Introducing the SL2 and SL2 Pro LED headlight bulbs! The new SL2 and SL2 Pro LED bulbs have been carefully designed as a direct plug-and-play replacement for your Jeep Compass headlight bulbs, providing a significant increase in output, in a compact package.

Next-Generation TST Technology. The SL2 Pro features new thermal separation technology (TST) LEDs. Unlike a traditional LED chip, TST LEDs are designed with electrical connections on the top. This means the entire bottom surface of the LED can be dedicated to channeling thermal energy out and away from the LED. This lowers thermal resistance, allowing the SL2 Pro to run at higher power levels than traditional LED bulbs, while maintaining focus.

Optimized Optical Focus. The headlight housings on your Jeep Compass are designed to focus light. If the light source in the housing is out of focus, it doesn't matter how bright the bulb is - you won't have a focused hotspot of light to shine down the road where you need it. Instead, you'll have more glare, which lights up the foreground and makes it harder to see in the distance. The SL2 and SL2 Pro LED bulbs were engineered to focus light just like your Compass original bulb, matching the original beam pattern while still providing an increase in total output. These days, some LED bulbs on the market use the smallest LEDs possible to accomplish focus, but this leads to "over-focus", where you begin seeing streaks, lines, and harsh cutoffs in the beam pattern. Instead of using the smallest LEDs possible, the SL2 and SL2 Pro LEDs were optimized to provide a smooth and comfortable beam pattern, while still maintaining focus and increased output.

Internal Cooling. The SL2 Pro features an integrated top-mounted fan for superior thermal management and reliability. Since the fan is sealed inside the housing, there's no concerns about damage from dust or moisture over time. And with the fan on the top of the bulb, the cooling happens right next to the LEDs - the source of the heat. While standard LED bulbs use heat pipes and other tricks to move heat to the bottom of the bulb, where it's cooled off, the SL2 Pro keeps it simple and more efficient. This provides maximum cooling efficiency and output.

The SL2 was designed as a compact, fanless solution. But that doesn't mean it's low-power! At 14 watts, the SL2 LED bulb still provides plenty of output thanks to a copper-core circuit board and a thermally-optimized full-metal housing with integrated heatsink.

Fully Integrated Design. Unlike traditional LED bulbs, the SL2 and SL2 Pro LED bulbs don't have any external drivers. Along with their compact size, that means excellent fitment inside your Compass's housing, without the need to tuck away bulky drivers. Installation is easy - simply remove your factory bulbs and these LED bulbs will fit in their place, with a plug-and-play connector. And if your original bulb is installed at an angle, no worries - SL2 Pro has you covered with an adjustable collar that can be securely locked at the correct position.

CANBUS Systems. Some vehicles use a CANBUS electrical system that can cause flickering or bulb-out warnings when LEDs are installed. These issues can be prevented with our Anti-Flicker Modules, which are designed to condition factory power signals, both by smoothing out flickering signals to the output, and by replicating the power consumption of a halogen bulb, to avoid vehicle "bulb out" warnings that usually come with LED power draws. Your vehicle uses a CANBUS system, so we include a pair of Anti-Flickers Modules with your order.

Reliability. Every part of the SL2 and SL2 Pro LED was engineered for reliability, from its full metal construction to the fully-sealed design. The SL2 and SL2 Pro were put through their paces in our environmental testing chambers - where the bulb lasted through repeated thermal cycles from -40 through 85 degrees Celsius (-40 to 185F), along with a range of other environmental tests. They're also designed with transient protection, to prevent premature failure from electrical spikes in the vehicle. They're even compatible up to 30V! We're so confident in the SL2 and SL2 Pro LED bulbs, that they're backed by an industry-leading limited LIFETIME warranty. See details at diodedynamics.com/warranty.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
